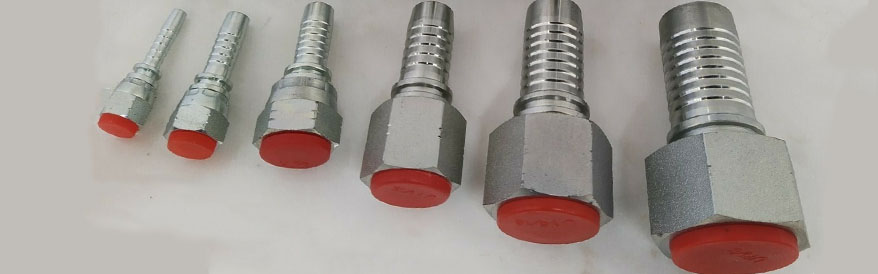

| Hose Fittings | |
| Material | SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , SS 310, SS 347 |
| Series | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| Working Pressure | (LOW) LL SERIES - 100 BAR |
| (MEDIUM)L SERIES - 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES - 200 BAR TO 800 BAR | |
| Size Range | LL SERIES - 4LL TO 12LL |
| L SERIES - 6L TO 42L | |
| S SERIES - 6S TO 38S | |
| Connections | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| Body Type | FORGED, BAR STOCK |
| Surface | STAINLESS STEEL - EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH |
| Temperature | (-60*C TO 400*C) |
| Equivalent Brands | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| Types | Camlock Coupling, Neckin, Nut, Ferrule, And Core Seat Nipple |
| Grade | |
| Stainless steel | ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H |
| Duplex steel | ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61. |
| Carbon steel |
ASTM / ASME A105. ASTM / ASME A 350 LF 2 . |
| Alloy steel | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91. |
| Nickel & Alloy Steel |
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) ,UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ). |
Types of Hose Fittings
Camlock Coupling
Necking
Nut
Ferrule
